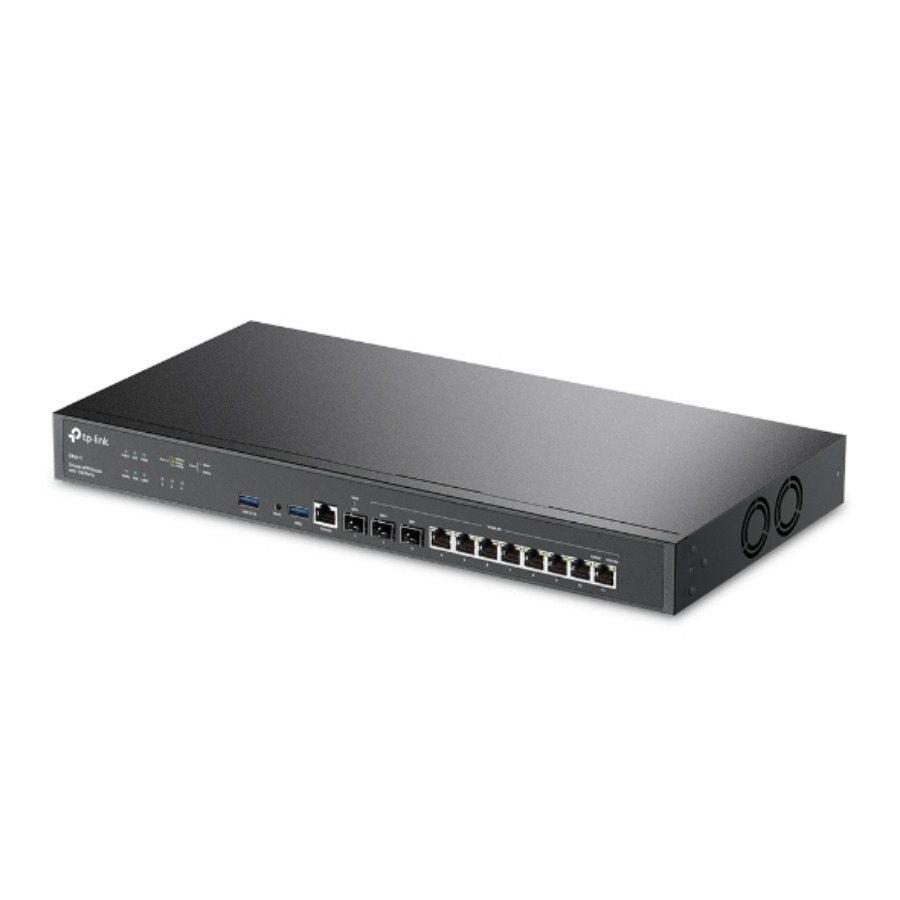

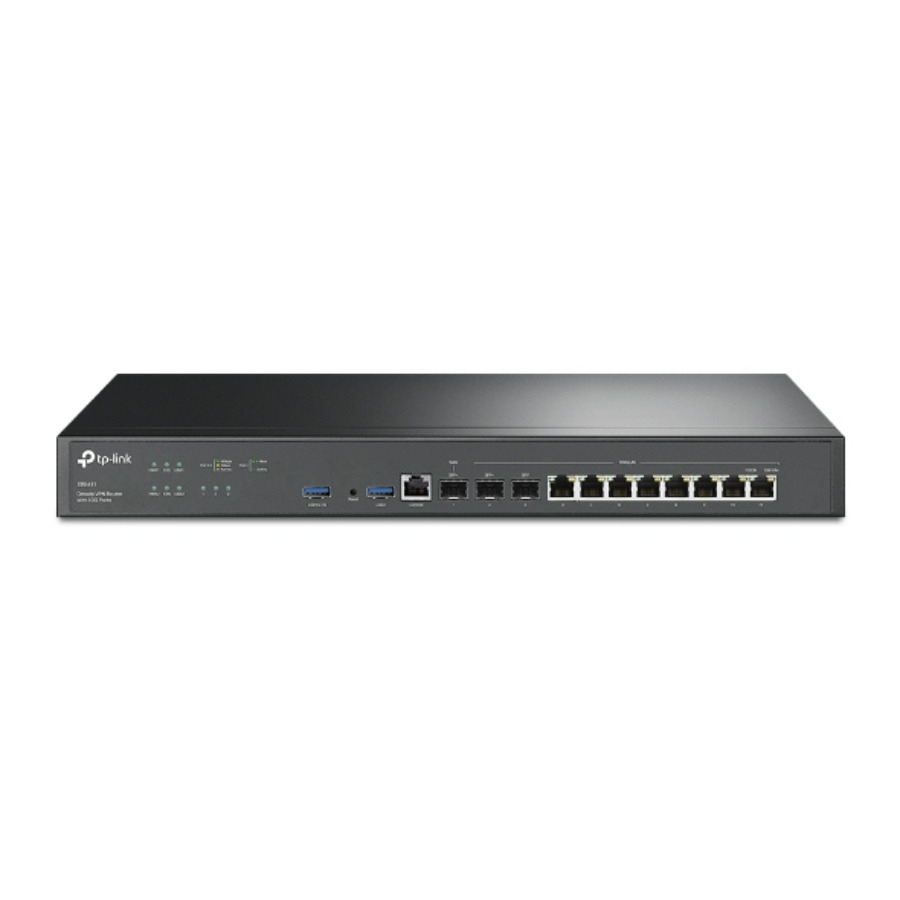

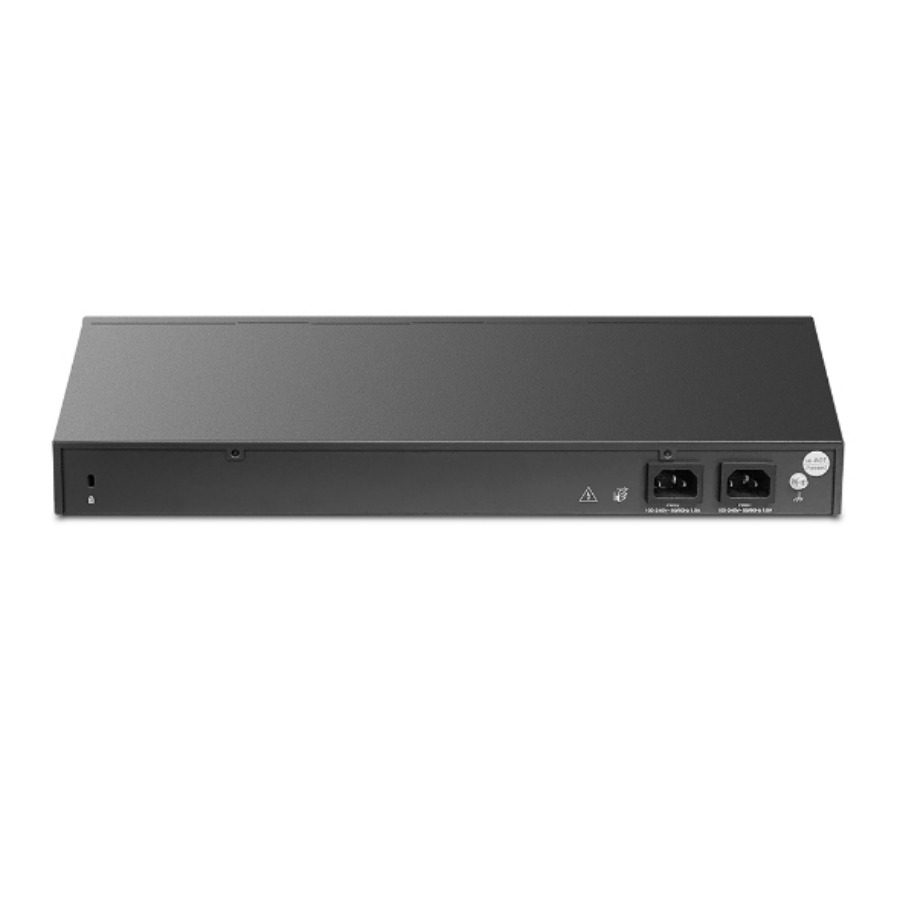

ROUTER | TP-LINK | ER8411 | VPN | OMADA CON PUERTOS 10G

ROUTER VPN ER8411INTEGRADO EN OMADA SDNGESTION CENTRALIZADA2 PUERTOS 10GE SFP+HASTA 10 PUERTOS WANVPN ALTAMENTE SEGURAABUNDANTES FUNCIONES DE SEGURIDADHTTPS://WWW.TP-LINK.COM/MX/BUSINESS-NETWORKING/OMADA-SDN-ROUTER/ER8411/#OVERVIEW CARACTERÍSTICAS DE HARDWARE ESTÁNDARES Y PROTOCOLOS• IEEE 802.3, IEEE802.3U, IEEE802.3AB, IEEE802.3Z, IEEE 802.3X, IEEE 802.1Q• TCP/IP, DHCP, ICMP, NAT, PPPOE, NTP, HTTP, HTTPS, DNS, IPSEC, PPTP, L2TP, OPENVPN, SNMPINTERFACE• 2× 10GE SFP+ PORTS (1 WAN, 1 WAN/LAN)• 1× 1GE SFP WAN/LAN PORTS• 8× 1GE RJ45 WAN/LAN PORTS• 1× RJ45 CONSOLE PORTS• 2× USB PORTS (CONNECTING 4G/3G MODEM AS WAN BACKUP)MEDIOS DE RED• 10BASE-T: UTP CATEGORY 3, 4, 5 CABLE (MAX 100 M)EIA/TIA-568 100Ω STP (MAX 100 M)• 100BASE-TX: UTP CATEGORY 5, 5E CABLE (MAX 100 M)EIA/TIA-568 100Ω STP (MAX 100 M)• 1000BASE-T: UTP CATEGORY 5E, 6 CABLE (MAX 100 M)CANTIDAD DE VENTILADORES2BOTÓNRESET BUTTONFUENTE DE ALIMENTACIÓNREDUNDANT DUAL POWER SUPPLIES (100–240 VAC, 50/60 HZ)POE BUDGET-FLASH4MB SPI NOR + 256 MB NANDDRAM4 GB DDR4LEDPWR, SYS, WAN, LAN, USB, FANDIMENSIONES (W X D X H)17.3 × 8.7 × 1.7 IN (440 × 220 × 44 MM)PROTECCIÓN4 KV SURGE PROTECTIONCERCADOSTEELMONTAJERACK MOUNTABLECONSUMO MÁXIMO DE ENERGÍA• 26.36 W (WITH USB 3.0 CONNECTED)• 19.12 W (WITHOUT USB 3.0 CONNECTED)RENDIMIENTO SESIONES CONCURRENTES2,300,000NEW SESSIONS /SECOND20,000NAT (STATIC IP)• UPLOAD: 9445.82 MBPS• DOWNLOAD: 9449.26 MBPSNAT(DHCP)• UPLOAD: 9426.83 MBPS• DOWNLOAD: 9426.20 MBPSNAT(PPPOE)• UPLOAD: 9413.96 MBPS• DOWNLOAD: 9102.01 MBPSNAT (L2TP)• UPLOAD: 4230.62 MBPS• DOWNLOAD: 4169.53 MBPSNAT (PPTP)• UPLOAD: 3933.86 MBPS• DOWNLOAD: 3821.97 MBPS64 BYTE PACKET FORWARDING RATE• UPLOAD: 1080 MBPS• DOWNLOAD: 1030 MBPSRENDIMIENTO VPN IPSEC• SHA1-AES256: 2140.45 MBPS• SHA2-AES256: 2080.20 MBPSOPENVPN1665.64 MBPSL2TP VPN THROUGHPUT• UNENCRYPTED: 5013.50 MBPS• ENCRYPTED: 2274.74 MBPSPPTP VPN THROUGHPUT• UNENCRYPTED: 3933.86 MBPS• ENCRYPTED: 3821.97MBPSSSL VPN THROUGHPUT1511.10 MBPS66 BYTE PACKET FORWARDING RATE-1,518 BYTE PACKET FORWARDING RATE• UPLOAD: 9970 MBPS• DOWNLOAD: 9970 MBPSFUNCIONES BÁSICAS WAN CONNECTION TYPE• STATIC/DYNAMIC IP• PPPOE• PPTP• L2TP• 6TO4 TUNNEL• PASS-THROUGH• MOBILE BROADBAND: 4G/3G MODEM FOR BACKUP VIA USB PORTMAC CLONEMODIFY WAN/LAN MAC ADDRESS*4DHCP• DHCP SERVER/CLIENT• DHCP ADDRESS RESERVATION• MULTI-NET DHCP• MULTI-IP INTERFACESIPV6WAN CONNECTIONVLAN802.1Q VLANIPTVIGMP V2/V3 PROXYFUNCIONES AVANZADAS ACLIP/PORT/PROTOCOL/DOMAIN NAME FILTERINGADVANCED ROUTING• STATIC ROUTING• POLICY ROUTINGBANDWIDTH CONTROL• IP/PORT-BASED BANDWIDTH CONTROL• GUARANTEE & LIMITED BANDWIDTHEQUILIBRIO DE CARGA• INTELLIGENT LOAD BALANCE• APPLICATION OPTIMIZED ROUTING• LINK BACKUP (TIMING*5, FAILOVER)• ONLINE DETECTIONNAT• ONE-TO-ONE NAT*5• MULTI-NET NAT• VIRTUAL SERVER• PORT TRIGGERING*5• NAT-DMZ• FTP/H.323/SIP/IPSEC/PPTP ALG• UPNPLÍMITE DE SESIÓNIP-BASED SESSION LIMITVPN SSL VPN• SSL VPN SERVER• SSL VPN CLIENT• 500 SSL VPN TUNNELSIPSEC VPN• 300 IPSEC VPN TUNNELS• LAN-TO-LAN, CLIENT-TO-LAN• MAIN, AGGRESSIVE NEGOTIATION MODE• DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 ENCRYPTION ALGORITHM• IKE V1/V2• MD5, SHA1 AUTHENTICATION ALGORITHM• NAT TRAVERSAL (NAT-T)• DEAD PEER DETECTION (DPD)• PERFECT FORWARD SECRECY (PFS)PPTP VPN• PPTP VPN SERVER• PPTP VPN CLIENT (32)*6• 300 TUNNELS (SHARED WITH L2TP)• PPTP WITH MPPE ENCRYPTIONL2TP VPN• L2TP VPN SERVER• L2TP VPN CLIENT (32)*6• 300 TUNNELS (SHARED WITH PPTP)• L2TP OVER IPSECOPENVPN• OPENVPN SERVER• OPENVPN CLIENT (10)*6• 110 OPENVPN TUNNELSSEGURIDAD FILTERING• WEB GROUP FILTERING*5• URL FILTERING• WEB SECURITY*5ARP INSPECTION• SENDING GARP PACKETS*5• ARP SCANNING*5• IP-MAC BINDING*5DEFENSA DE ATAQUE• TCP/UDP/ICMP FLOOD DEFENSE• BLOCK TCP SCAN (STEALTH FIN/XMAS/NULL)• BLOCK PING FROM WANCONTROL DE ACCESOSOURCE/DESTINATION IP BASED ACCESS CONTROL AUTENTICACIÓN AUTENTICACIÓN WEB• NO AUTHENTICATION• SIMPLE PASSWORD*2• HOTSPOT（LOCAL USER / VOUCHER*2 / SMS*2 / RADIUS*2）• EXTERNAL RADIUS SEVER• EXTERNAL PORTAL SEVER*2• INSTAGRAM FOLLOW*2ADMINISTRACIÓN OMADA APPYES. REQUIRING THE USE OF OC300, OC200, OMADA CLOUD-BASED CONTROLLER, OR OMADA SOFTWARE CONTROLLER.CENTRALIZED MANAGEMENT• OMADA HARDWARE CONTROLLER (OC300)• OMADA HARDWARE CONTROLLER (OC200)• OMADA SOFTWARE CONTROLLER• OMADA CLOUD-BASED CONTROLLERCLOUD ACCESSYES. REQUIRING THE USE OF OC300, OC200, OMADA CLOUD-BASED CONTROLLER, OR OMADA SOFTWARE CONTROLLER.SERVICIODYNAMIC DNS (DYNDNS, NO-IP, PEANUTHULL, COMEXE)MANTENIMIENTO• WEB MANAGEMENT INTERFACE• REMOTE MANAGEMENT• EXPORT & IMPORT CONFIGURATION• SNMP V1/V2C/V3• DIAGNOSTICS (PING & TRACEROUTE)*5• NTP SYNCHRONIZE*5• SYSLOG SUPPORTZERO-TOUCH PROVISIONINGYES. REQUIRING THE USE OF OMADA CLOUD-BASED CONTROLLER.MANAGEMENT FEATURES• AUTOMATIC DEVICE DISCOVERY• INTELLIGENT NETWORK MONITORING• ABNORMAL EVENT WARNINGS• UNIFIED CONFIGURATION• REBOOT SCHEDULE• CAPTIVE PORTAL CONFIGURATIONOTROS CERTIFICACIONCE, FCC, ROHSCONTENIDOS DEL PAQUETE• OMADA 10G MULTI-WAN SECURITY GATEWAY ER8411• POWER CORD• RACK-MOUNT KIT• QUICK INSTALLATION GUIDEREQUISITOS DEL SISTEMAMICROSOFT WINDOWS 98SE, NT, 2000, XP, VISTA™ OR WINDOWS 7/8/8.1/10/11, MAC OS, NETWARE, UNIX OR LINUXAMBIENTE• OPERATING TEMPERATURE: 0–40 ℃ (32–104 ℉);• STORAGE TEMPERATURE: -40–70 ℃ (-40–158 ℉)• OPERATING HUMIDITY: 10–90% RH NON-CONDENSING• STORAGE HUMIDITY: 5–90% RH NON-CONDENSING
