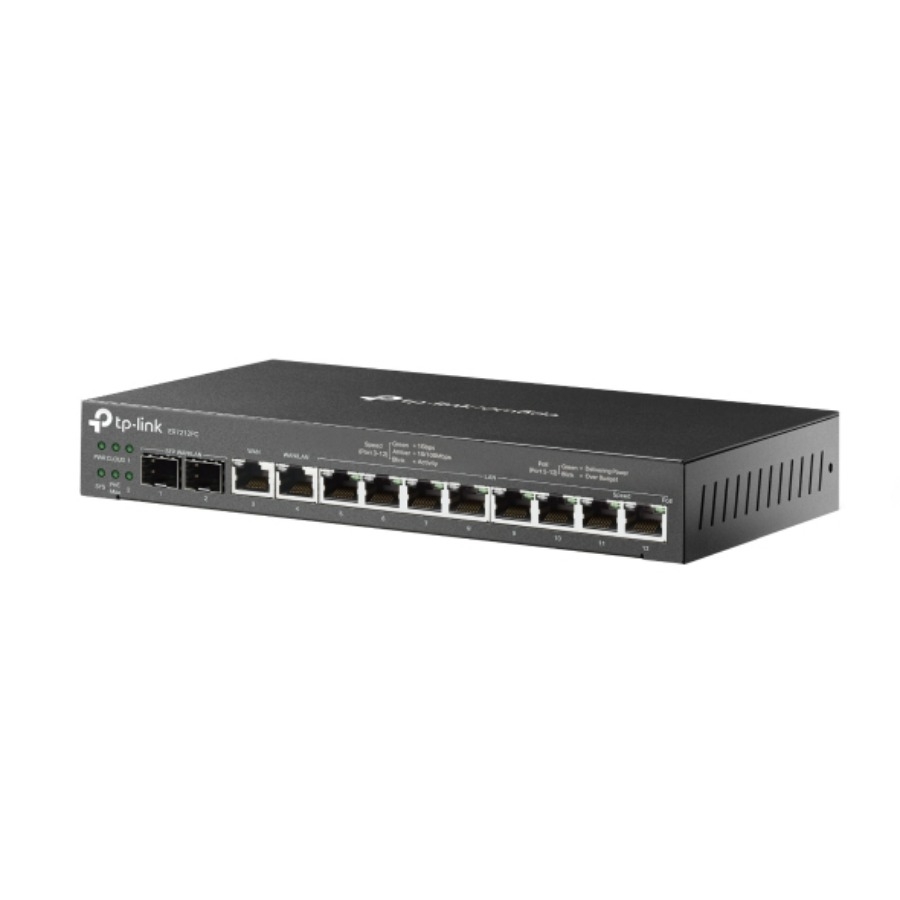

ROUTER | TP-LINK | ER7212PC | VPN GIGABIT 3 EN 1 (ROUTER, CONMUTADOR POE Y CONTROLADOR) | 4 PUERTOS WAN | 2 PUERTOS GIGABIT SFP WAN/LAN | 1 PTO RJ45 GIGABIT WAN | 1 PTO GIGABIT RJ45 WAN/LAN

•ENRUTADOR 3 EN 1: INTEGRA EL ROUTER, EL INTERRUPTOR POE Y EL DRIVER OMADA POR COMPLETO •HARDWARE PROFESIONAL: CPU DE DOBLE NÚCLEO DE 1.2 GHZ CON MEMORIA DDR3 DE 1 GB QUE PROPORCIONA UN RENDIMIENTO ESTELAR PARA HASTA 12 PUERTOS GIGABIT •HASTA 4 PUERTOS WAN ETHERNET: EQUIPADO CON 2 PUERTOS GIGABIT SFP WAN/LAN, 1 PUERTO GIGABIT RJ45 WAN Y 1 PUERTO GIGABIT RJ45 WAN/LAN •110W POE PRESUPUESTO: 8× 802.3AT/AF-COMPATIBLE POE+ RJ45 PUERTOS LAN PRODUCEN UNA FUENTE DE ALIMENTACIÓN TOTAL DE 110W •ACCESO A LA NUBE: EL ACCESO REMOTO A LA NUBE Y LA APLICACIÓN OMADA OFRECEN UNA GESTIÓN CENTRALIZADA EN LA NUBE DE TODA LA RED DESDE DIFERENTES SITIOS, TODO CONTROLADO DESDE UNA SOLA INTERFAZ EN CUALQUIER LUGAR, EN CUALQUIER MOMENTO. CARACTERÍSTICAS DE HARDWARE ESTÁNDARES Y PROTOCOLOS• IEEE 802.3, IEEE802.3U, IEEE802.3AB, IEEE802.3Z, IEEE 802.3X, IEEE 802.1Q• TCP/IP, DHCP, ICMP, NAT, PPPOE, NTP, HTTP, HTTPS, DNS, IPSEC, PPTP, L2TP, SNMPINTERFACE• 2 GIGABIT SFP WAN/LAN PORTS• 1 GIGABIT WAN PORT• 1 GIGABIT LAN/WAN PORT• 8 GIGABIT LAN PORTSMEDIOS DE RED• 10BASE-T: UTP CATEGORY 3, 4, 5 CABLE (MAX 100 M)EIA/TIA-568 100Ω STP (MAX 100 M)• 100BASE-TX: UTP CATEGORY 5, 5E CABLE (MAX 100 M)EIA/TIA-568 100Ω STP (MAX 100 M)• 1000BASE-T: UTP CATEGORY 5, 5E, 6 CABLE (MAX 100 M)CANTIDAD DE VENTILADORESFANLESSBOTÓNRESET BUTTONFUENTE DE ALIMENTACIÓN53.5VDC/2.43A ADAPTERPOE BUDGET8 PORTS POE+ OUTPUT, 110 W POE BUDGETFLASH8MB NOR + 4 GB EMMCDRAM1 GB DDR3LEDPWR, SYS, CLOUD, POE MAX, SFP 1, SFP 2, WAN (SPEED, LINK/ACT), LAN (SPEED, LINK/ACT)DIMENSIONES (W X D X H)8.9 × 5.2 × 1.4 IN (226 × 131 × 35 MM)PROTECCIÓN4 KV SURGE PROTECTIONCERCADOSTEELMONTAJEDESKTOP/WALL-MOUNTCONSUMO MÁXIMO DE ENERGÍA• 133.2W WITH POE MAX• 13.88W WITHOUT POERENDIMIENTO SESIONES CONCURRENTES24,980NEW SESSIONS /SECOND1,900NAT (STATIC IP)935.5 MBPS / 942.1 MBPSNAT(DHCP)940.2 MBPS / 941.7 MBPSNAT(PPPOE)913.1 MBPS / 935.2 MBPSNAT (L2TP)545.0 MBPS / 912.7 MBPSNAT (PPTP)523.0 MBPS / 912.8 MBPSRENDIMIENTO VPN IPSECAES256: 168.5 MBPSOPENVPN34 MBPSL2TP VPN THROUGHPUT• UNENCRYPTED: 845.3 MBPS• ENCRYPTED: 333.2 MBPSPPTP VPN THROUGHPUT• UNENCRYPTED: 1012.6 MBPS• ENCRYPTED: 401.4 MBPS66 BYTE PACKET FORWARDING RATE154,069 PPS / 156,977 PPS1,518 BYTE PACKET FORWARDING RATE81,193 PPS / 81,193 PPSFUNCIONES BÁSICAS WAN CONNECTION TYPE• STATIC IP• DYNAMIC IP• PPPOE• PPTP• L2TPMAC CLONEMODIFY WAN MAC ADDRESSDHCP• DHCP SERVER• DHCP ADDRESS RESERVATION• MULTI-IP INTERFACES• MULTI-NET DHCPIPV6SUPPORTVLAN802.1Q VLANIPTVIGMP V2/V3 PROXYFUNCIONES AVANZADAS ACLIP/PORT/PROTOCOL/DOMAIN NAME FILTERINGADVANCED ROUTING• STATIC ROUTING• POLICY ROUTINGBANDWIDTH CONTROLIP/PORT-BASED BANDWIDTH CONTROLEQUILIBRIO DE CARGA• INTELLIGENT LOAD BALANCE• APPLICATION OPTIMIZED ROUTING• LINK BACKUP• ONLINE DETECTIONNAT• MULTI-NET NAT• VIRTUAL SERVER• NAT-DMZ• FTP/H.323/SIP/IPSEC/PPTP ALG• UPNPLÍMITE DE SESIÓNIP-BASED SESSION LIMITVPN SSL VPN-IPSEC VPN• 20 IPSEC VPN TUNNELS• LAN-TO-LAN, CLIENT-TO-LAN• MAIN, AGGRESSIVE NEGOTIATION MODE• AES128, AES192, AES256 ENCRYPTION ALGORITHM• IKE V1/V2• SHA1, SHA2 AUTHENTICATION ALGORITHM• NAT TRAVERSAL (NAT-T)• DEAD PEER DETECTION (DPD)• PERFECT FORWARD SECRECY (PFS)PPTP VPN• PPTP VPN SERVER• PPTP VPN CLIENT (10)• 16 TUNNELS• PPTP WITH MPPE ENCRYPTIONL2TP VPN• L2TP VPN SERVER• L2TP VPN CLIENT (10)• 16 TUNNELS• L2TP OVER IPSECOPENVPN• OPENVPN SERVER• OPENVPN CLIENT (10)§• 16 OPENVPN TUNNELSSEGURIDAD FILTERINGURL FILTERINGARP INSPECTION-DEFENSA DE ATAQUE• TCP/UDP/ICMP FLOOD DEFENSE• BLOCK TCP SCAN (STEALTH FIN/XMAS/NULL)• BLOCK PING FROM WANCONTROL DE ACCESOSOURCE/DESTINATION IP BASED ACCESS CONTROLAUTENTICACIÓN AUTENTICACIÓN WEB• NO AUTHENTICATION• SIMPLE PASSWORD• HOTSPOT (LOCAL USER / VOUCHER / SMS / RADIUS)• EXTERNAL RADIUS SEVER• EXTERNAL PORTAL SEVERADMINISTRACIÓN OMADA APPYES. CENTRALIZED MANAGEMENTYES.CLOUD ACCESSYES. SERVICIODYNAMIC DNS (DYNDNS, NO-IP)MANTENIMIENTO• WEB MANAGEMENT INTERFACE• REMOTE MANAGEMENT• EXPORT & IMPORT CONFIGURATION• SNMP V1/V2C/V3• SYSLOG SUPPORTZERO-TOUCH PROVISIONING-MANAGEMENT FEATURES• AUTOMATIC DEVICE DISCOVERY• INTELLIGENT NETWORK MONITORING• ABNORMAL EVENT WARNINGS• UNIFIED CONFIGURATION• REBOOT SCHEDULE• CAPTIVE PORTAL CONFIGURATION• MANAGEMENT UP TO 2 SWITCHES, AND 10 EAPSOTROS CERTIFICACIONCE, FCC, ROHSCONTENIDOS DEL PAQUETE• ER7212PC• POWER ADAPTER• POWER CORD• QUICK INSTALLATION GUIDEREQUISITOS DEL SISTEMA• MICROSOFT WINDOWS 98SE, NT, 2000, XP, VISTA™ OR WINDOWS 7/8/8.1/10• MAC OS, NETWARE, UNIX OR LINUXAMBIENTE• OPERATING TEMPERATURE: 0 °C TO 45 °C (32 °F TO 113 °F)• STORAGE TEMPERATURE: -40 °C TO 70 °C (-40 °F TO 158 °F)• OPERATING HUMIDITY: 10% TO 90% NON-CONDENSING• STORAGE HUMIDITY: 5% TO 90% NON-CONDENSING
